UVSS / UVIS Fixed Under Vehicle Inspection System CCD Line Scan IP68 Protection Level

UVSS/UVIS fixed under vehicle inspection system CCD line scan

Parameters:

1. Store or load time: <1 second;

2. Vehicle Image local magnification: > 2 times;

3. Vehicle Image scaling: 16 times;

4. Vehicle image display mode: large format transverse;

5. Vehicle image storage format: BMP or JPEG;

6. System interface language: English (can be customized);

7. Display resolution: 1920 * 1080P

8. Communication interface: RS232/RS422;

9. Scene image display: ≥1 channel

10. Speed identification: when the vehicle pass the scanner and stops suddenly, then restart, the device can identify automatically, system will display the complete vehicle image

11. Scan mode: linear scanning, the ground sensor coil trigger;

12. Vehicle speed: 1-60km/h, suggest speed : less than 30km/h

13. View angle: 175 degrees

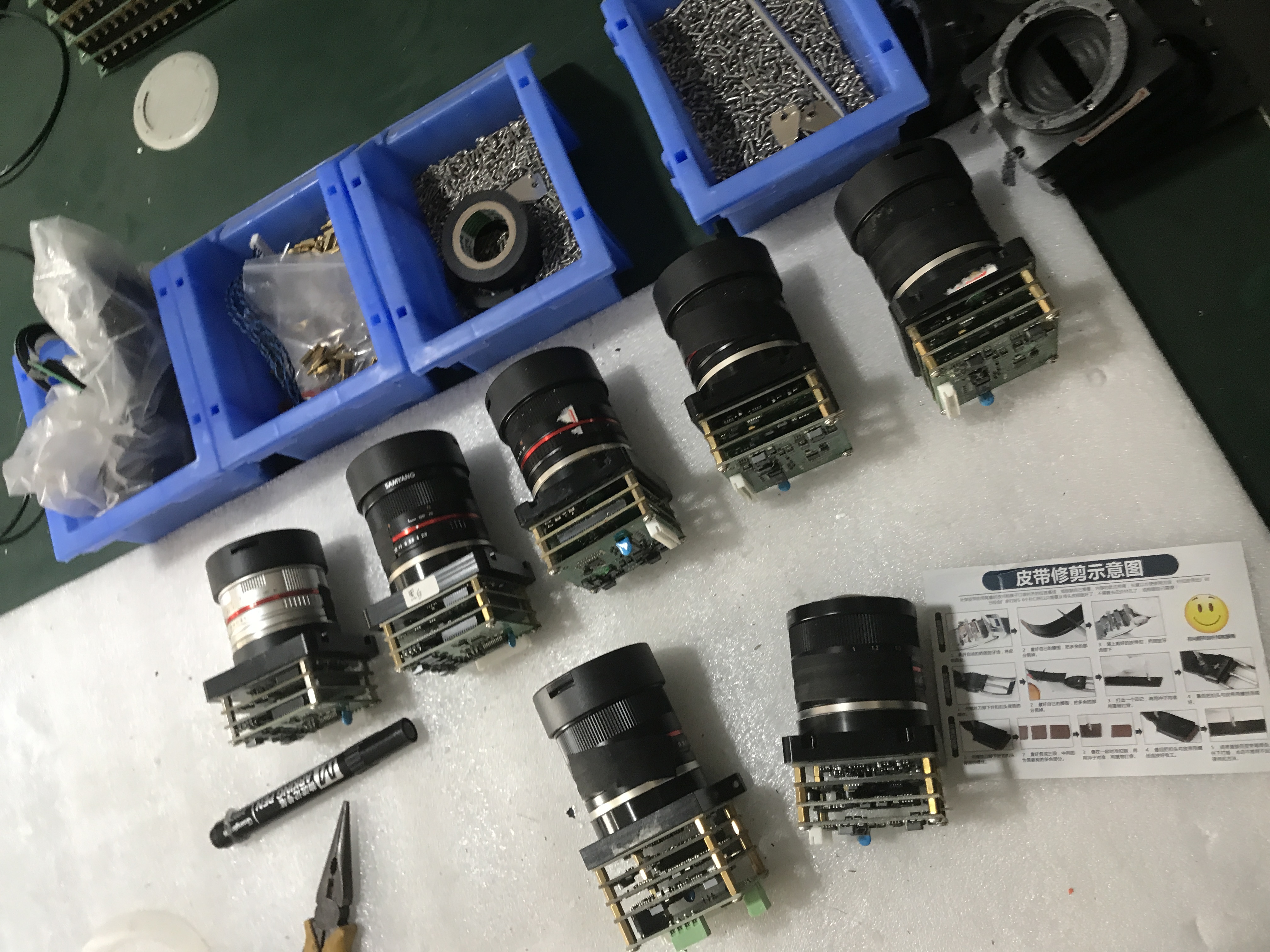

14. Image Longitudinal resolution: 2048 pixels CCD;

15. Scanner connecting cable: 100 meters (can be customized)

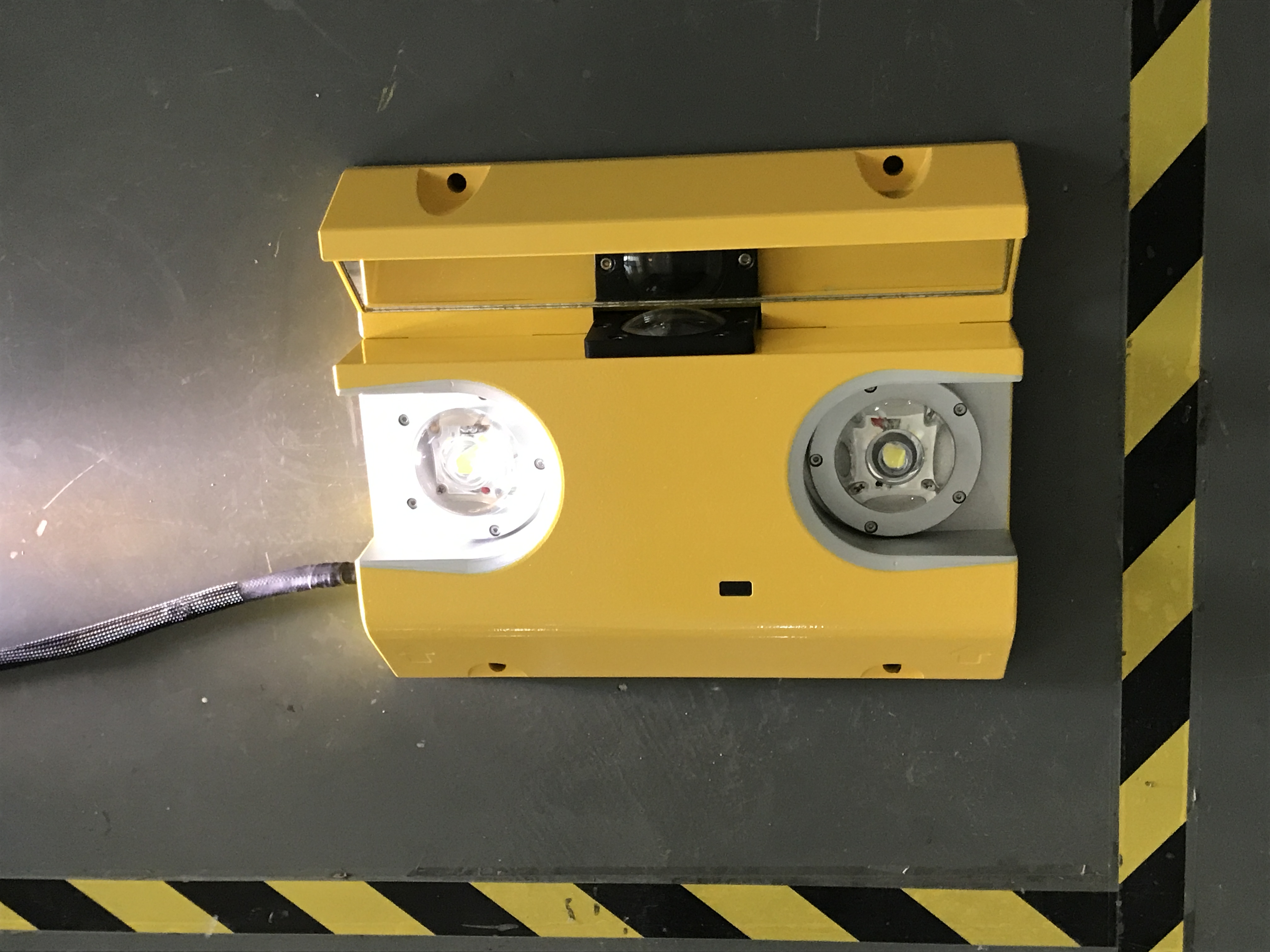

16. Lighting components : Four single sealed LED surface light source ;

Life : 100,000h

17. Under Vehicle image scanner with a unique open-wide field scan design;

18. Working voltage: DC24V

19. Power Supply:AC110V-240V/50-60Hz

20. Structure design:single sealed design；

21. Loading weight: 30 Tons

22. Scanner size: 1200*350*210mm

23. Weight: 180kg

24. Environment temperature: -40 degrees - +70 degrees

25. License plate recognition
