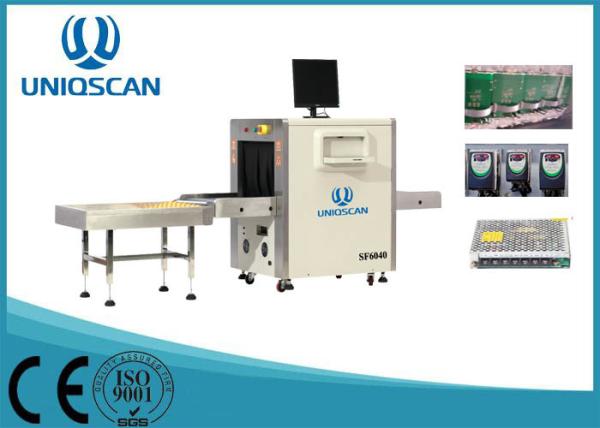

Security Inspection X Ray Luggage Scanner Machine SF6040 For Station Airport

Name: Security Inspection X Ray Luggage Scanner Machine SF6040 For Station Airport
Brand: Uniqscan
Price: 6000 USD

Brand Name : Uniqscan

Model Number : SF6040

Certification : CE ISO

Place of Origin : China

MOQ : 1 UNIT

Price : 6000- 18000 usd/unit

Payment Terms : T/T

Supply Ability : 50000pcs per month

Delivery Time : in one week

Packaging Details : Wooden box

Product Name : X-ray security inspection machine SF6040 for station airport security

Power Requirement : 220V AC (±10%) 50±3Hz

Power consumption : 1.0KW (Max)

Noise level : <58dB

Conveyor Speed : 0.22m/s

Conveyor Max Load : 150 kg

Wire Resolution : 38AWG

Spatial Resolution : 1.0mm Horizontal and Vertical

Contact Now

Security Inspection X Ray Luggage Scanner Machine SF6040 For Station Airport

General Specifications

General Specification

Tunnel Size	600(W)*400(H)mm
Conveyor Speed	0.22m/s
Conveyor Max Load	170kg
Wire Resolution	32AWG to 40AWG
Spatial resolution	horizontal:1.3 or 1.0mm, vertical: 1.3 or 1.0mm
Penetration	34 mm steel
Film Safety	Guarantee ISO1600 Film
X-ray Leakage	<1 μSv/h (at a distance of 5cm from external housing)
Pass rate	720 bags per hour

1) Display: High-resolution 19 inch color LCD display

2) Color quality: 24-Bit real colors based on materials

3) Edge enhancement: Object contour edge is more distinct

4) Super image enhancement: Image detail is more distinct

5) High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly

6) Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

7) Magnifier: Partial magnifying function

8) Brightening/dimming: Increase/Decrease brightness of image

9) Image recurrence: Display the previous twenty images and process any one of them

10) Image restoration: Restore image to initial status

11) Image storage: Real-time store any image and process it in operation status

12) Multi-energy: High/low energy: Switch from high energy to low energy

13) Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green. Assist to detect drug and explosive powder

Environment Specifications:

Operating temperature/humidity: 0℃ ~ 45℃/20% ~ 95% (Non-condensing)

Storage temperature/humidity: -20℃ ~ 60℃/20% ~ 95% (Non-condensing)
