0 To 255 Sensitivity Full Body Mmetal Detectors Walk Through 18 Zones With 5.7 Inch Screen

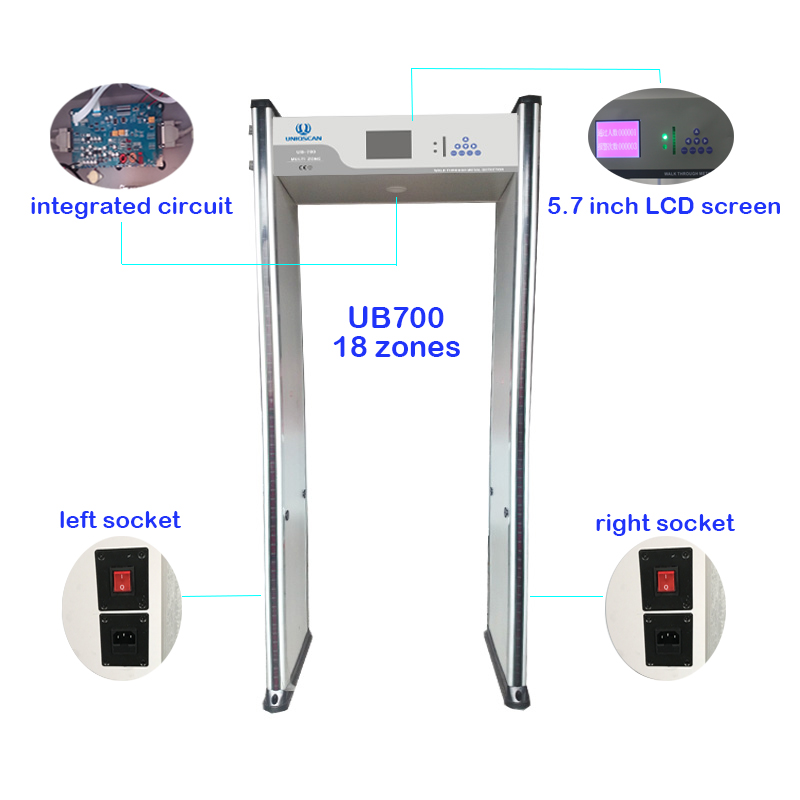

18 zones , 0 to 255 sensitivity Walk Through Metal Detector with 5.7 inch screen

Parameters:

• Detector zone :6/24/33Zones (Option)
• Sensitivity :0 to 255 sensitivity
• Display way: 5.7 inch LCD screen
• Sound & LED alarm: Both Side LED indicator ,easily show where the metal is.
• Power supply: AC85V-264V
• Working Frequency: 4KHZ—8KHZ
• Operation Temperature: -20℃--+50℃
• backup battery: approx 4 hours (Option)
• package volume : 90 pcs for 20" container
• Material:Using high density fireproof material
• Warranty:2 years
• Certification: CE, ISO

Characteristic & Function:

• Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
• Sensitivity adjustable: Each zone has 256 sensitivity level, 0-255 adjustable
• 5.7 inch LCD screen
• Infrared remote control
• Sound & LED alarm: Both Side LED indicator ,easily show where the metal is.
• Automatically count passengers and alarm times
• Alarm strength indicator on control panel
• Password protection, only the authorized person can operate.
• Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
• Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
• Using high density fireproof material
• Program Self-diagnostic when power on, no need initial or periodic calibration
• Modularization design, easy for maintenance and replacement.
• Sensitivity Test piece: One yuan Coin, omnidirectional detection
• 4-8 hours backup battery (Option)

Application:

Exhibition center, Electronic Factory, Bank, Prison, Government office, Hotel etc

walk through security scanners

walk through safety gate
