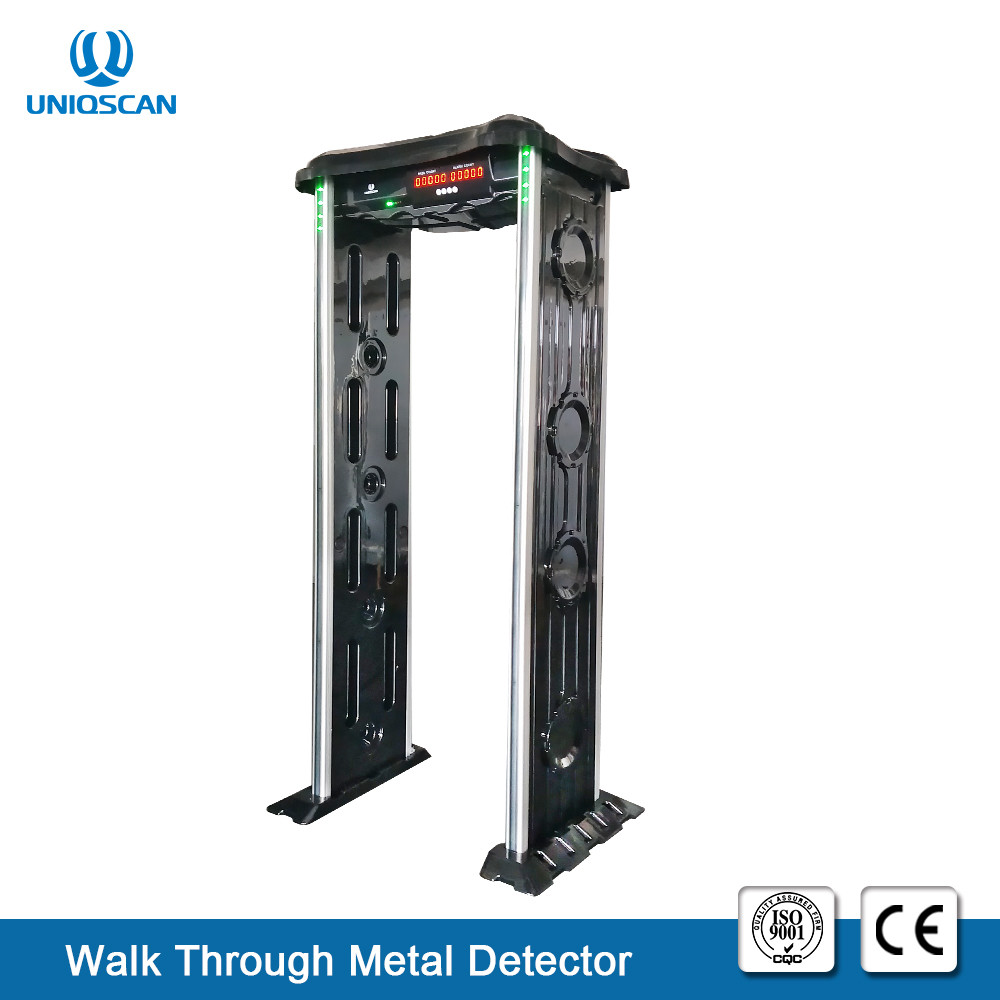

WALK THROUGH METAL DETECTOR
MODEL:UB500/6 zones waterproof standard
Product Point :
>> 6 detecting zones
>> ABS materials with IP65 waterproof
>> Strong aluminum to protect 4 sides so shape won't change
>> The power socket is covered under the rainshed
>> The top just like an umbrella far to the machine body around 5cm
Parameters
| Power Supply: | AC85V-264V |
| Working temperature: | -20℃--+50℃ |
| Working Frequency : | 4KHZ—8KHZ |
| Standard External size: | 2200mm(H)*800mm(W)*580mm(D) |
| Standard Internal size: | 2010mm(H)*700mm(W)*500mm(D) |
| Package size for door panels: | 2260*650*260mm *1ctn |
| Package size for control unit: | 780*390*250 mm*1ctn |
| Gross weight: | 70KG |
Characteristic & Function
Ø Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
Ø Sensitivity adjustable: Each zone has 100 sensitivity level
Ø Sound & LED alarm: Both Side LED indicator ,easily show where the metal is.
Ø Automatically count passengers and alarm times
Ø Alarm strength indicator on control panel
Ø Password protection: only the authorized person can operate.
Ø Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
Ø Harmless to human body:is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
Ø Using high density fireproof material
Ø Program Self-diagnostic when power on, no need initial or periodic calibration
Ø Modularization design:easy for maintenance and replacement.
Ø Sensitivity Test piece: One yuan Coin, omnidirectional detection
Ø 4-8 hours backup battery (Option)
Product Tags:
|
|
