33 Zone Infrared 7" LCD Walk Through Metal Detector

Product Categories
SHENZHEN UNISEC TECHNOLOGY CO.,LTD
Contact Now

33 Zone Infrared 7" LCD Walk Through Metal Detector

Brand Name : UNIQSCAN

Model Number : UB800

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1/SET

Price : USD900-950

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Delivery Time : Within 7 days after payment

Packaging Details : Carton or wooden case

Warranty : 2 years

Sensity test : One single coin

Display : 7 inch color LCD scree

Detecting Zones : 33 Zones

Backup battery : 4-8 hours (Option)

Sensitivity : 999 Sensitivity Level

Contact Now

Easy to assemble 33-zone infrared remote door-frame metal detector with 7-inch color LCD display

Parameters :

Detecting zone: 33zone
Display way: 7 inch color LCD screen
Sensitivity: 0-999 adjustable
Detecting speed: up to 100 passenger/ min.
Working temperature: -20ºC--+50ºC
PASS and ALARM count: up to 999
Gross weight: 67KG
Warranty: 2 years
Standard External size: 2200mm(H)X800mm(W)X580mm(D)
Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)
Package size for door panels: 2260*650*260mm *1ctn
Package size for control unit: 780*390*250 mm*1ctn

Detail Photo :

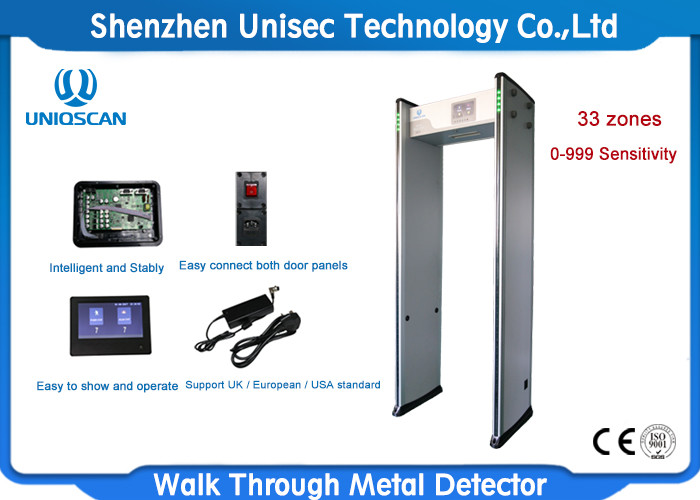

33 Zone Infrared 7" LCD Walk Through Metal Detector
CHARACTERISTIC & FUNCTION:

  • 33 detecting zones, Simultaneous alarm from multi- zones;
  • Sensitivity adjustable: Each zone has 999 sensitivity level 0-999 adjustable
  • 7 inch color LCD screen
  • Infrared remote control
  • Using high density fireproof material
  • Automatically count passengers and alarm times
  • PASS and ALARM count: up to 99999
  • High sensitivity: Ferrous/ non-ferrous /Alloy can be detected
  • 15 preset programs for security applications
  • Alarm volume range from level 0 to 9
  • Alarm tones: Change from 1 to 9
  • 100 frequencies for option. To work with neighbouring gates at 50cm
  • Sound & LED alarm: Two Sides LED indicator easily show where the metal is.
  • Detecting speed: up to 100 passenger/ min.
  • Password protection, only the authorized person can operate.
  • Easy assembly: designed with only 2 pieces cables and 8 screws,
  • Modularization design,easy for maintenance and replacement.
  • Sensitivity Test piece: One yuan Coin, omnidirectional detection
  • Network support
  • Can be customized 36 zones
  • 4-8 hours backup battery (Option)
