Anti-terrorism Under Vehicle Inspection Scanning System Mobile Type For Vehicle Access
1.Specification
Software:
1,using black and white Array CCD scanning technology Dynamic imaging;
2,Scanning Image resolution: ≥ 2048
3,Store or load time: <1 second;
4,Vehicle image display mode: large format transverse;
5,System interface language: English (can be customized);
6,Display resolution: adapt to a variety of display resolution;
7,Vehicle image data transfer interface: NetworkRJ45
8,Scene image display: ≥1 channel
9,Dedicated image processing functions
10,License plate recognition (need customer provide the SDK LPR software of the exported country, we can integrate it to the UVSS without extra cost )
Computer:
| Display | 22 inch LCD Screen |
| CPU | INTEL Quad-Core Processor |
| Motherboard | dedicated motherboard |
| Memory | DDR3 , more than 2GB |
| Hard disk | 500G high-speed hard disk |
| Working voltage | AC220V 50/60Hz |
| Data transmission cable length | 10m (standard) |
Vehicle image system, control equipment and environmental adaptability:
| Display | 22 inch LCD Screen |
| CPU | INTEL Quad-Core Processor |
| Motherboard | dedicated motherboard |
| Memory | DDR3 , more than 2GB |
| Hard disk | 500G high-speed hard disk |
| Working voltage | AC220V 50/60Hz |
| Data transmission cable length | 10m (standard) |
| Scan mode | automatic , non- external trigger scanning |
| The maximum scan rate | 18kHz |
| Vehicle speed | ≤30km/h |
| Loading weight | 30 Tons |
| View angle | 180 degrees |
| Scanner connecting cable | 10 meters (can be customized more than 10m) |
| Lighting components | Two single sealed LED surface light source ; |
| Life | 50,000h |
| Working voltage | DC24V |
| Power Supply | AC220V/50-60Hz |
| Structure design | single sealed design |
| Environment temperature | -20 degrees - +55 degrees |
| Appearance | Aluminum copper alloy composite material |

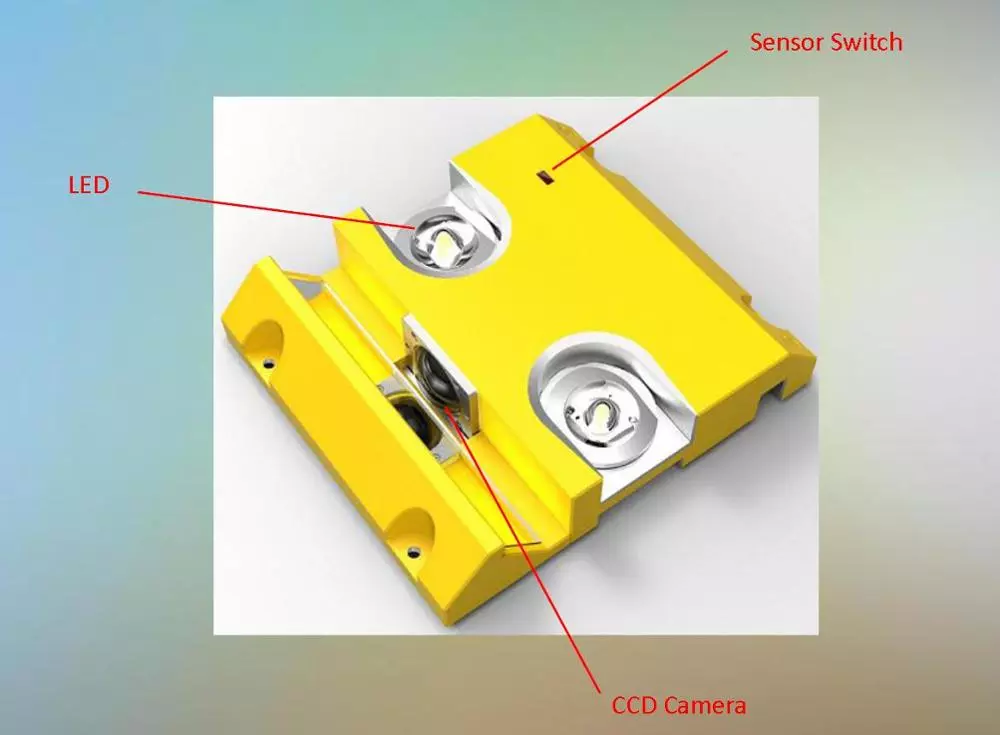

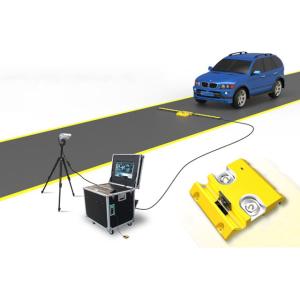

Under Vehicle image scanner with a unique open-wide field scan design

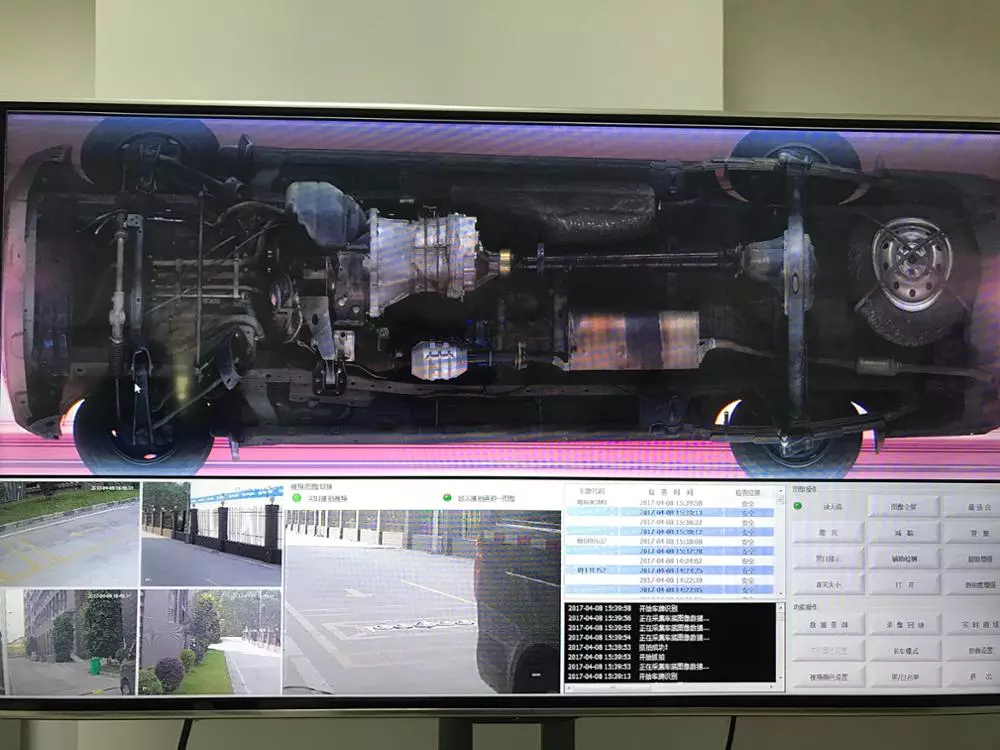

2.Software interface

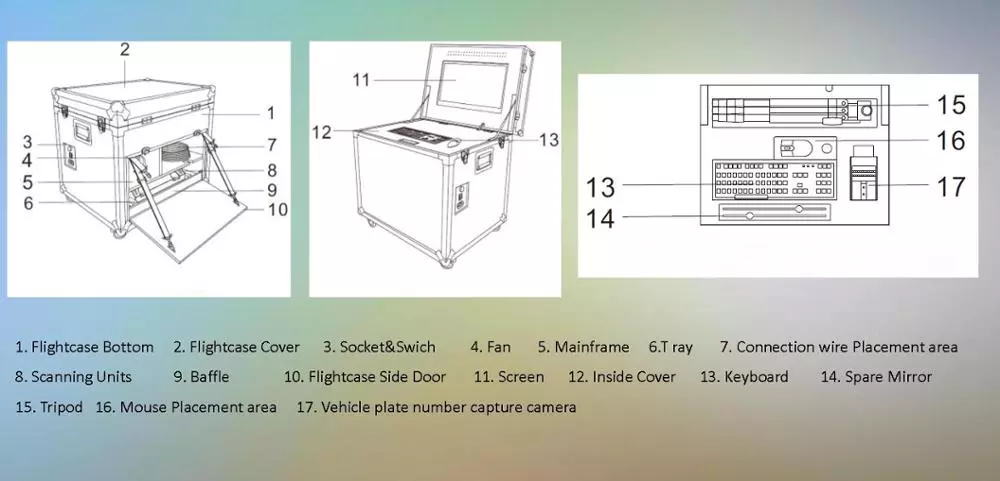

3.Detailed parts

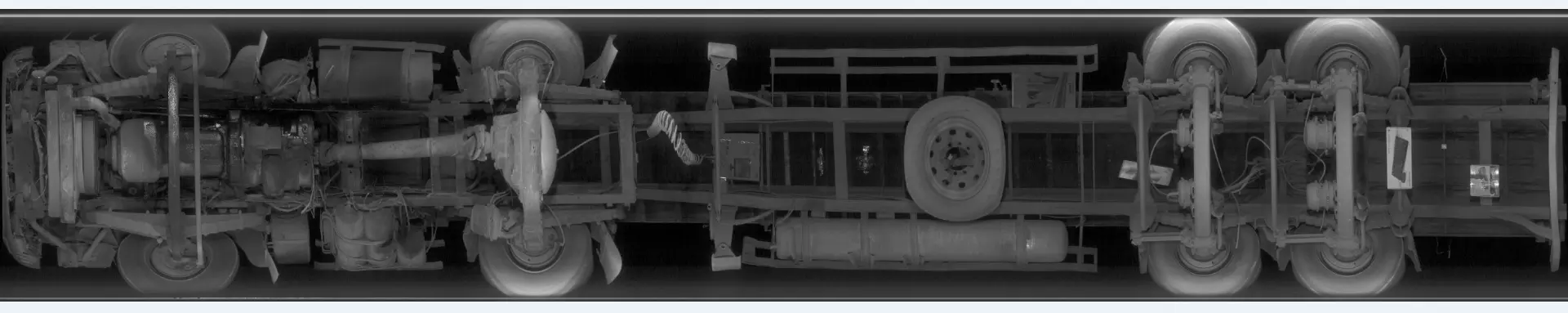

4.Scanned images

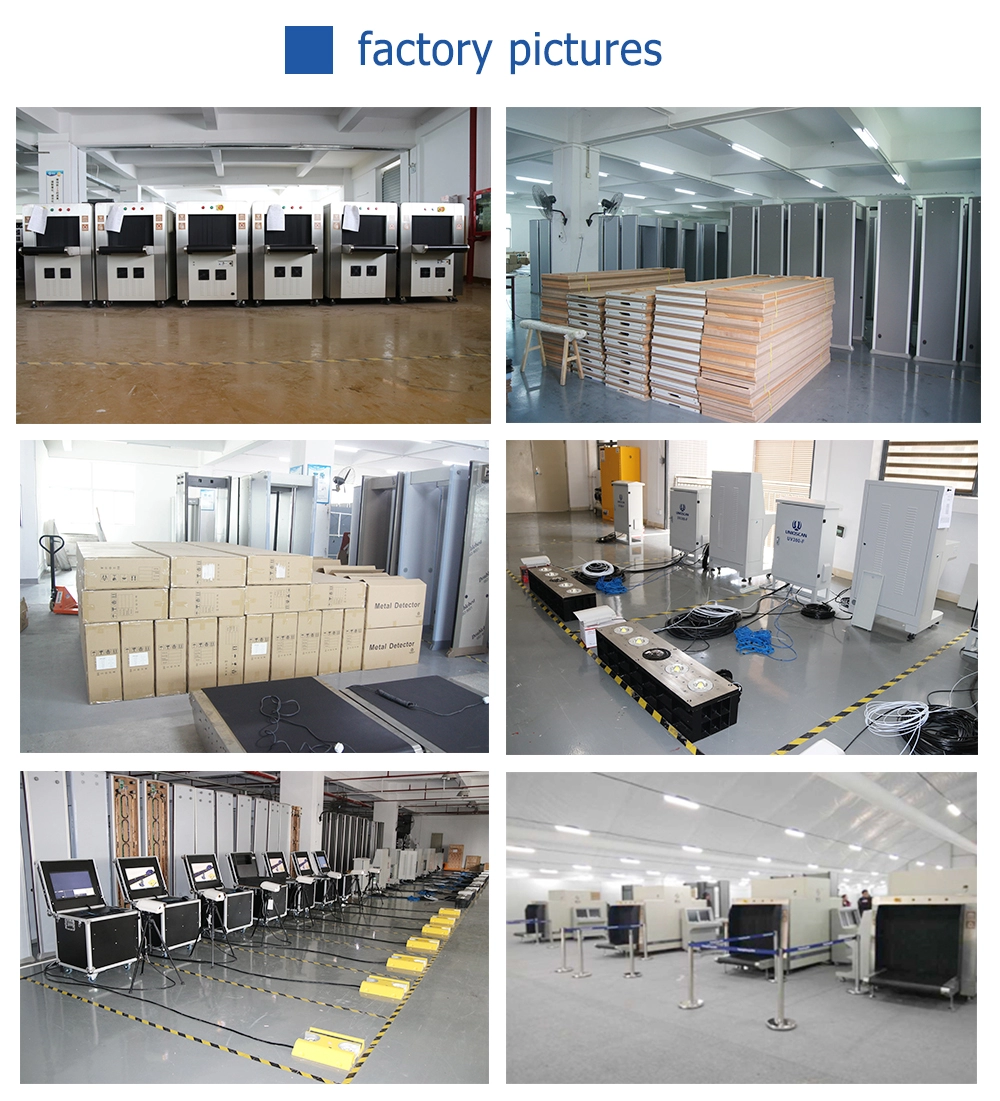

5.Factory Pictures
6.Certificates

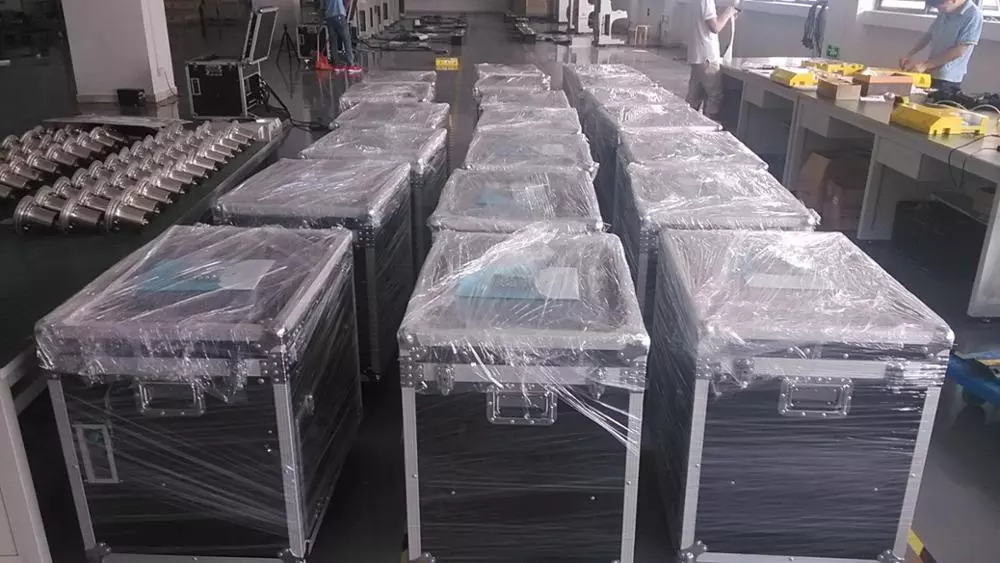

7.Package

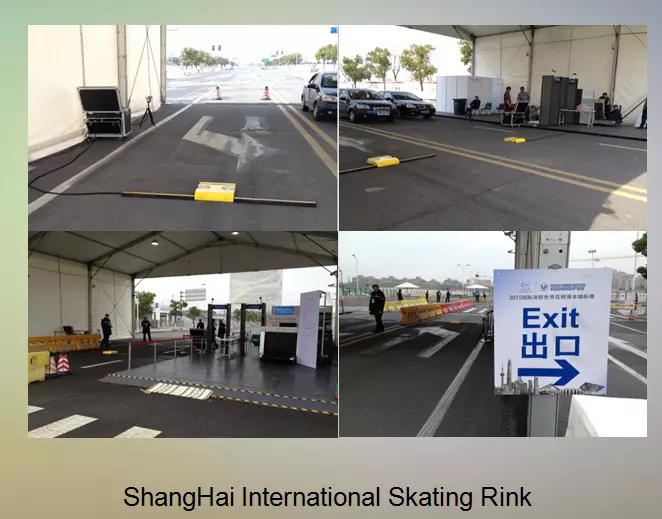

8.Successful cases
